Light Made One Soft Material Twist, Spin and Reset

A flat strip of water-rich polymer can now be told which way to twist simply by changing where light falls on it. In laboratory tests, the same material formed right-handed helices, left-handed helices and tendril-like shapes, then returned to its starting state in darkness.

KEY NUMBER
The hydrogel expanded by more than 80,000 percent in volume within 40 seconds under the reported test conditions.

Why changing the direction of a twist matters

A screw, spring or plant tendril has a handedness: it curls in one direction rather than the other. Engineers can build that geometry into a device, but changing it after fabrication usually requires layered materials, permanent patterns or a new component.

The new hydrogel starts as a chemically homogeneous strip. Patterned illumination creates an expansion mismatch across the strip, letting the researchers choose whether it bends into a helix or a twist and whether that shape turns right or left.

That control could eventually help small soft machines alter how they grip, move or interact with narrow spaces. NewTqnia has previously covered a soft robot designed to dress a moving person, where compliance came from the robot's structure. Here, the material itself supplies the changing geometry.

How patterned light reshapes one material

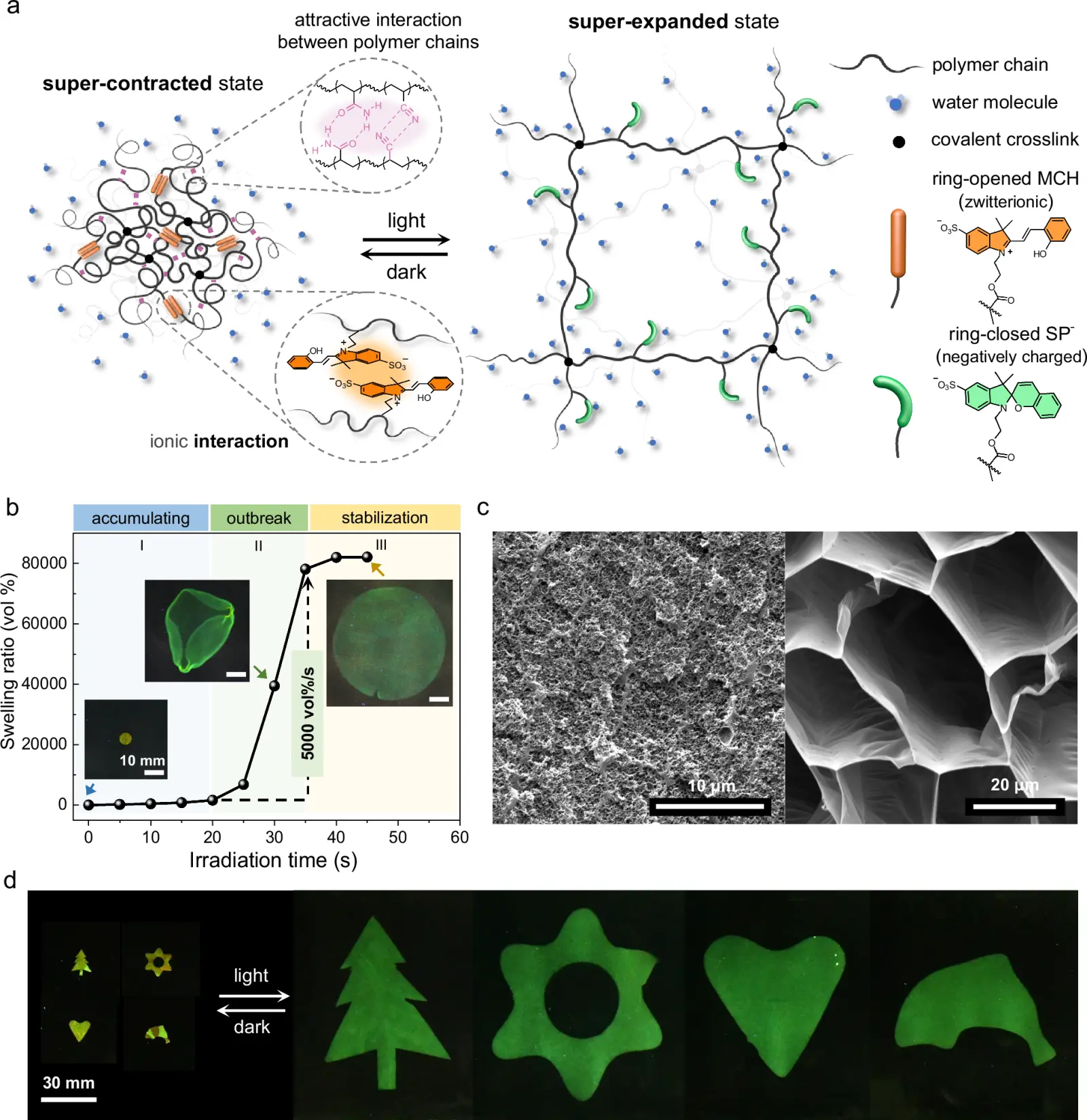

The polymer network contains spiropyran molecules that change form under light. That photoisomerization alters interactions inside the network and draws in water, producing rapid local swelling.

Illuminating one side creates an asymmetric strain gradient that favors a helix. Illuminating both sides produces a different internal pattern and can favor a twist. When the light is removed, the network contracts in darkness, erasing the programmed shape so another light pattern can write a new one.

The team also combined regions with opposite handedness and made tendril-like forms. In a proof of locomotion, the shape change generated rotation, showing that the geometry can do mechanical work rather than merely produce an unusual silhouette.

What happens next

The clearest next test is endurance: how many write, erase and rewrite cycles the strip can survive without losing speed or shape accuracy. Researchers will also need to measure force, energy use and control precision while the actuator carries a load.

The result complements earlier work on a skin-like hydrogel that maintained sensor contact through sweat and motion. Both exploit water-rich polymer networks, but the new study uses swelling gradients to create movement rather than electrical contact.

Takeaway

The advance is not that light can move a soft material. It is that one uniform strip can reversibly choose opposite handed shapes and convert them into rotation. Whether that elegant control becomes useful robotics will depend on force, fatigue and optical access, none of which the current demonstration settles.
