A Skin-Like Hydrogel Keeps Wearable ECG, EMG and EEG Sensors Working Through Sweat and Motion

The weak link in wearable health monitoring

Wearable electrodes can measure the tiny electrical signals produced by the heart, muscles and brain. Yet a device can have excellent electronics and still fail if its contact with skin shifts, dries or becomes noisy during movement. Human skin is soft, curved, oily, sweaty and constantly changing; many electrode materials are comparatively stiff.

Researchers have now reported a hydrogel interface designed to solve that mismatch. Announced on July 15, 2026 and described in the journal Wearable Electronics, the material sits between an electrode and the body, conforming to skin while preserving an electrically stable connection.

A gel engineered to act like living tissue

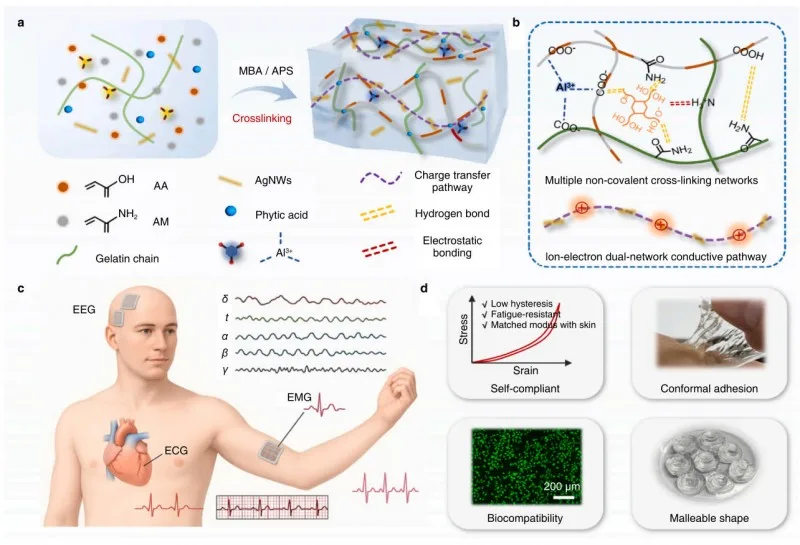

The PPGA-Al hydrogel combines a flexible polymer network with gelatin, silver nanowires, mobile ions and reversible molecular bonds. Those ingredients serve different functions: softness and stretchability allow the interface to follow the body, adhesive interactions keep it attached, and combined ionic and electronic pathways carry biological signals toward the sensor.

The researchers measured a Young’s modulus of about 30 kilopascals, close to soft skin tissue. Its low mechanical energy-loss coefficient—about 5.06%—suggests that repeated deformation does not quickly dissipate the material’s structure or performance.

Signals recorded through difficult conditions

When integrated with wearable electrodes, the hydrogel supported electrocardiogram (ECG), electromyogram (EMG) and electroencephalogram (EEG) recording. The team reported a signal-to-noise ratio of roughly 28 decibels and demonstrated continuous EEG monitoring for six hours.

The interface also retained useful signals during exercise, sweating and tests involving oily skin. These are important stress conditions because moisture, motion and skin oils can loosen conventional adhesive electrodes or introduce artifacts that resemble biological changes.

Why a better interface matters

Longer, more comfortable monitoring could help capture intermittent arrhythmias, sleep-related changes, muscle activity or neurological events that a brief clinic recording misses. A conformable interface may also improve sports science, rehabilitation and human-machine controls.

The advance is not a new diagnostic algorithm or a complete medical device. It targets the physical boundary where the body meets electronics—a less visible component that often determines whether a wearable sensor remains trustworthy outside a laboratory.

A prototype, not yet a clinical patch

The six-hour EEG demonstration is promising but does not establish performance over days or weeks. The announcement does not provide evidence from a large, diverse clinical cohort, nor does it show that the hydrogel improves diagnosis or patient outcomes. Controlled tests cannot reproduce every combination of hair, skin disease, temperature, humidity, motion and prolonged use.

Silver nanowires, polymers and adhesives also require careful biocompatibility, irritation and disposal assessment before repeated medical use. Manufacturing consistency, sterilization, shelf life and integration with wireless electronics remain engineering questions.

What must happen next?

Future studies will need head-to-head comparisons with established gel electrodes, longer wear trials and quantified rates of signal dropout and skin reactions. Researchers must also test whether the material can be removed comfortably and whether its adhesion changes after repeated cycles of sweat and drying.

If those hurdles are met, a skin-like hydrogel could make continuous monitoring feel less like attaching hardware to the body and more like wearing a flexible second skin. The result is an enabling materials advance, potentially important, but still several validation steps away from routine healthcare.
