A Flat Computer Chip Can Now Unfold Into Complex 3D Machines
Researchers used wafer-compatible manufacturing to create flat structures that deploy into stable domes, saddles and adjustable reflectors. The approach could eventually support curved sensors, optics and space hardware, but the study demonstrates mechanical structures rather than a complete folding computer chip.
Verified topics and entities
Modern electronics are built on flat wafers, even when the device that needs them is curved. Researchers have now shown a way to manufacture a structure flat, then deploy it into a stable three-dimensional form with carefully programmed curvature.
The 30-second summary
- What happened? A team fabricated patterned polyimide sheets with standard wafer techniques and deployed them into domes, saddle-like surfaces and adjustable parabolic reflectors.
- Why does it matter? Electronics and optical components could eventually be manufactured using mature planar processes, then transformed to fit curved bodies, robots or spacecraft.
- What is the catch? The prototypes are mechanical architectures and reflectors. They are not complete processors, commercial devices or independently proven mass-production systems.
KEY FACT
A flat disk deployed into a stable spherical cap, while fabricated parabolic reflectors produced light patterns consistent with the team's optical predictions.
Why flat manufacturing creates a problem
Semiconductor factories are exceptionally good at making precise patterns across flat surfaces. That is ideal for conventional chips, but awkward for devices intended to wrap around an eye, follow a robot's body or unfold after a space launch.
Engineers can transfer flexible electronics onto curved objects, but forcing a flat sheet into a surface that curves in two directions can stretch, wrinkle or damage it. The new Nature Communications study approaches the problem differently: the required curvature is encoded into the sheet before deployment.
How a flat sheet learns its final shape
The structure is divided into auxetic cells, patterns that can expand laterally when pulled. Each cell is designed with two stable configurations. The researchers vary those cells across the sheet so different regions expand by different amounts when the structure is pushed into its second state.

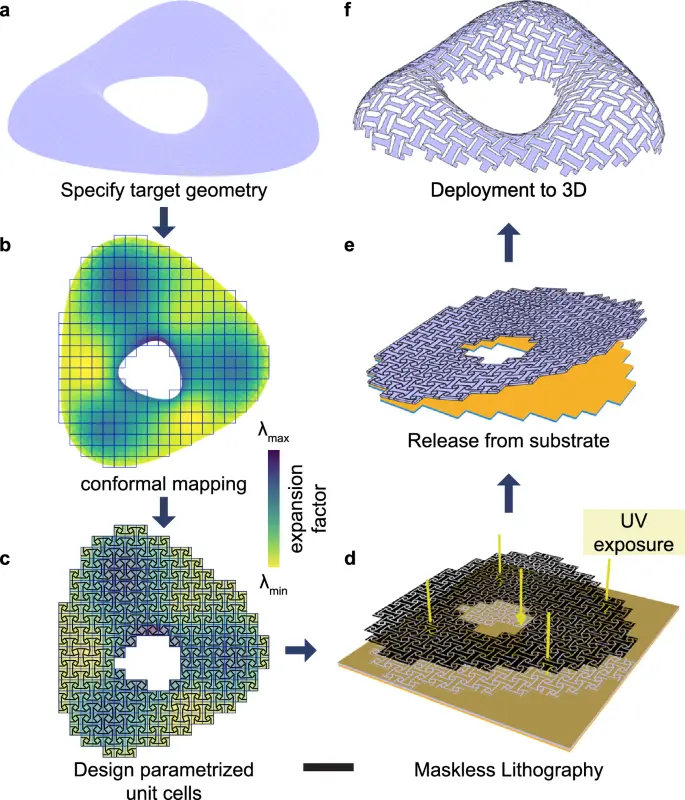

A computational method first flattens the target three-dimensional mesh, then determines the local expansion needed to rebuild its curvature. Wafer fabrication produces that patterned precursor. Mechanical deployment supplies the final transformation.
This differs from simply bending a flexible circuit. The deployed architecture can remain in its second stable shape without continuous external force. Earlier work on bistable deployable structures shows why such predictable state changes are attractive for lightweight systems that must be transported compactly.
From domes to adjustable optics
The researchers validated a spherical cap made from a flat disk and explored shapes with both positive and negative curvature. They also fabricated parabolic reflectors whose focal length could be adjusted through deployment.
That optical demonstration is important because it adds a function, not only a shape. Potential directions include curved sensor arrays, adaptive optics, antennas and electronics that must fit unusual surfaces. Deployable reflectors are already an active area for space engineering because larger apertures can improve communication and sensing while still fitting inside a launch vehicle, as illustrated by related antenna research.
Before we call it a folding computer
- The study did not integrate a working processor, power system or dense electronic circuit into the deployed forms.
- The shapes were demonstrated under laboratory conditions; repeated deployment, fatigue and environmental durability require further testing.
- The authors are inventors on a provisional patent, and industrial cost and manufacturing yield have not been established.
- Applications in implants or spacecraft would need separate reliability, safety and qualification programmes.
What happens next
The decisive step is integrating functional electronics while preserving their electrical performance during deployment. Researchers must also test larger structures, smaller features and many repeated transformations.
The result is therefore not a chip that unfolds into a computer. It is a manufacturing route that could let future electronic and optical devices begin life on a familiar flat wafer and acquire their useful three-dimensional shape afterward.
