Silicon Nanospheres Gave 3D Objects Glossy Colour Without Pigment

A research team led by Kobe University has demonstrated a pigment-free coating that can cover curved objects with vivid structural colour while retaining gloss. The coating is only one nanoparticle layer thick, yet optimized samples reflected more than 75% of incoming visible light.

The work, published in Small Structures, uses core-shell spheres made from a silicon centre surrounded by silica. Each sphere is roughly a quarter of a micrometre across. Instead of absorbing selected wavelengths like a conventional dye, the particles scatter particular colours through optical resonances known as Mie resonances.

The important advance is not structural colour by itself. The team had previously produced angle-stable colours on flatter surfaces. This study adds conformal coverage of objects up to about 10 centimetres, adjustable gloss and a protective overcoat that did not substantially shift the hue.

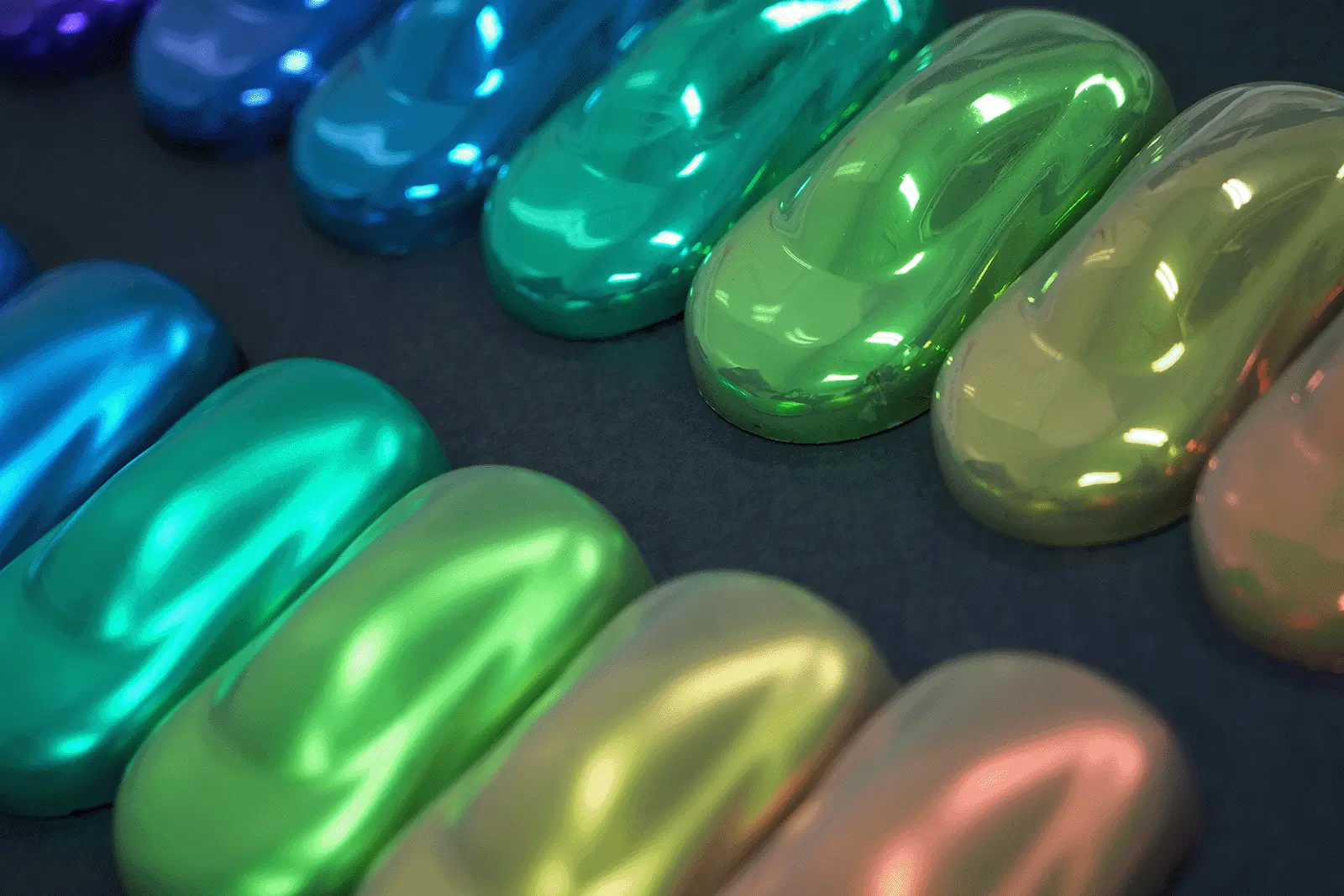

To coat a shape, the researchers spread the particles into a floating monolayer at the boundary between water and air. An object was submerged below that layer. As water was drained, the particle sheet settled around its surfaces. The modified Langmuir-Schaefer process covered demonstration objects including toy cars rather than requiring every face to be printed separately.

Many familiar structural colours, such as those on some butterfly wings, change with viewing angle because their microscopic structures act collectively. Here, each silicon particle contributes its own resonance. That helps suppress iridescence even when the particles are not arranged in a perfectly ordered crystal.

The researchers also changed the apparent gloss without changing the nanoparticle recipe. Preparing the underlying surface differently altered how smooth the finished layer appeared. A transparent protective coating could then be added with little change to the measured colour, an important early test because exposed nanoparticles would be vulnerable in practical products.

The result could eventually matter for lightweight decorative coatings, displays or surfaces where pigments fade or add material. But the study establishes a laboratory fabrication method, not an industrial paint replacement.
