A 3D-Printed Bottle Shows When Its Cap Is Loose, Without Batteries or Sensors

A chemical bottle can now reveal a red warning when its cap is loose and switch to a green check when it is tightened, without a battery, sensor or screen. MIT researchers achieved the effect by printing tiny lenses, interleaved images and moving mechanical parts into the object itself.

KEY NUMBER
The researchers fabricated six example objects, and their current optical design can encode as many as 10 visible states.

A label that moves with the object

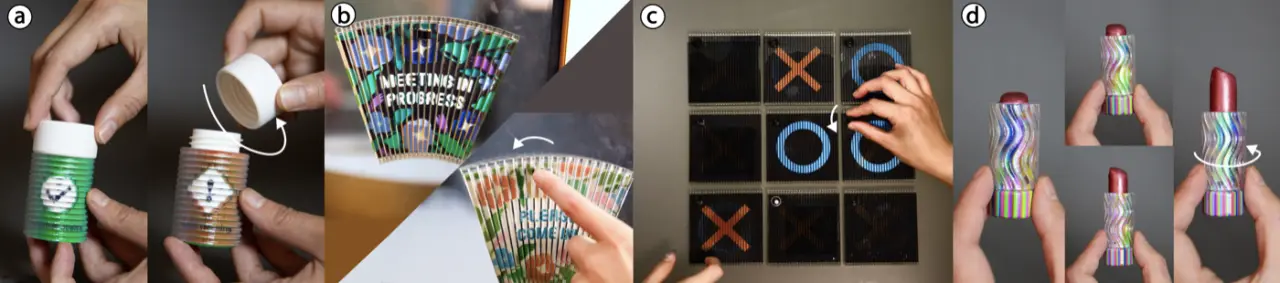

The system, called ShiftLens, turns an object's surface into a passive status display. In the bottle demonstration, tightening the cap pushes an internal layer into a new position. That movement changes which image is visible, so the bottle shows a check mark when closed and a hazard symbol when loose.

Other prototypes include a click pen that changes its barrel pattern with the position of its tip, a door sign controlled by a switch, a tic-tac-toe board with rotating cells, a lipstick tube with a shifting color gradient and a lampshade with a mechanically animated flame pattern. The research team's ShiftLens project page documents all six fabricated examples.

How two optical layers create the effect

The upper surface contains an array of small lenticular lenses. Beneath it sits a pattern made from narrow, interleaved strips belonging to different images. Moving the lens layer by a controlled distance reveals a different set of strips, much like a lenticular card changes picture when tilted.

ShiftLens changes the image through deliberate mechanical motion rather than the viewer's position alone. The software accepts the object's geometry, the desired images and a movement type, then generates the lenses, patterns and mechanism. According to the authors' full technical paper, the complete object can be produced in one pass on a multimaterial 3D printer.

The team created three built-in controls: a two-state switch, a roller for smooth transitions and a knob that can select several positions. An existing motion, such as twisting a lipstick barrel, can also drive the optical shift without adding another control.

Why this is more useful than a visual trick

Electronic indicators are flexible, but they need power, wiring and protection. A printed mechanical indicator could tolerate situations where a screen or circuit is unnecessary or vulnerable, including outdoor signs, packaging fasteners and objects exposed to water or chemicals.

The strongest idea is not that plastic can imitate a screen. It is that an object's normal movement can become its own readout. That direct connection may make some warnings easier to understand because the visible state changes through the same action the user is supposed to complete.

MIT's August 5 research report suggests possible industrial uses such as packaging that shows when a fastener has loosened. Those uses remain proposals, not tested commercial products.

What comes next

The researchers plan to reduce the number of design inputs and support more ways to move the optical layers. The more important engineering tests will involve repeated use, dirt, temperature changes, scratches and imperfect viewing angles, since these conditions determine whether a passive warning remains legible outside a laboratory.

If those tests succeed, ShiftLens could offer a small but practical alternative to adding electronics everywhere. Its promise is narrow and credible: make a mechanical state visible at a glance, using the object's own motion and no power at all.
